From Zinc to RHEINZINK

Zinc has been used in construction for more than 200 years – titanium zinc is the modern version of this naturally-occurring metal.  RHEINZINK is an alloy which consists of fine zinc and minimal quantities of titanium and copper. The fine zinc and titanium are sourced from a variety of countries of origin, such as Scandinavia, Spain, Belgium and Germany – rarely though from Mexico or Peru. Copper, as a recycling material, comes in the form of broken scrap for processing. The alloy additives are important for the patina colour and the special material-technological properties.

The alloy composition gives the materials not just the necessary strength, but the products can easily be shaped, too. These processing possibilities allow complicated details to be mastered and the realisation of any roof shapes. RHEINZINK titanium zinc, whether as cladding for a dormer, gable, balcony or chimney, represents an upgrade for the entire building due to its appealing and sophisticated appearance.  Roof edges, porches and wall coverings shine in new splendour thanks to this noble material.

Nearly 100% of the titanium zinc used can be recycled with very little energy use and without any environmentally-harmful residues. The protective patina, which forms on the zinc surface over time, ensures a tremendously long life expectancy. Numerous historical buildings show that zinc roofs are completely intact, even after 200 years, and this without any notable maintenance effort. Furthermore, every RHEINZINK product already consists of 30% secondary material.

The manufacturing process of RHEINZINK titanium zinc consists of several steps, which are carried out in the production at the Datteln plant. We take a look at the pre-alloying areas, the melting-casting-rolling line, the pre-weathering plant and then end with further processing. The first step is the pre-alloying.

What exactly is pre-alloying? This refers to alloys which are not used to manufacture end products, but are added to molten metal. The pre-alloy supports the process of metal bonding. For example, the variety of melting points make it very difficult to join various metals into a final rolled alloy. Thus, all three components of the alloy, as required by RHEINZINK, have different melting points: zinc 418°C; copper 1,083°C; titanium: 1,670°C.

The pre-alloy ingots are later added, in a certain ratio with fine zinc, to the large melting furnace, where a temperature of ‘only’ approx. 550°C  is then required for melting.

In this chapter of our series entitled ‘From Zinc to RHEINZINK’, we present a really special feature. The RHEINZINK plant in Datteln is home to the only continuous melting-casting-rolling line worldwide!

In the 1960s, the RHEINZINK engineers played a vital role in the development of this patented melting-casting-rolling line, thus replacing the traditional packet rolling process. The difference to other manufacturers is that the special RHEINZINK alloy is processed in a continuous production process, from melting, to rolling, to coils of different metal thicknesses.

The first step is the melting. The ovens reach a temperature of 550°C and melt the pre-alloy together with the fine zinc ingots and/or return scrap into the final RHEINZINK alloy. The liquid alloy obtained is now introduced into the casting machine, one of the centrepieces of the RHEINZINK process. The technology upon which this is based creates the conditions for a uniform and, above, all, failure-free material quality. The circulating cooling water ensures that the RHEINZINK alloy is cooled so far below the melting point that a solid cast strand is produced.

RHEINZINK coil is manufactured in a continuous process and, at the end, giant coils are created which gleam slightly and have a silvery appearance. We are referring to the bright rolled RHEINZINK material, as well as to our RHEINZINK CLASSIC product range. Over time, this surface forms a matt grey protective layer, the so-called patina. As the process of patina forming is more irregular, it sometimes has an uneven appearance, i.e. external factors, such as rain, influence the speed of the patina formation. Thus, bright rolled RHEINZINK, which is installed in a corner of a building protected against the rain, will naturally develop its patina layer slower than a roof-surface on the same building. It is somewhat comparable with wood. The table-top of a garden table usually weathers faster than the table-legs – especially the sides which slope inwards. The delayed patina formation is not a disadvantage, it is a natural process, but many architects, builders and developers prefer a uniform appearance right from the start. This is where our pre-weathering comes into play.

Since the 1980s, we have been offering pre-weathered surfaces. What we are speaking of here is our current prePATINA product range in the versions, blue-grey and graphite-grey. With these variants, the colour tone of the protective layer, i.e. the patina, is anticipated in our pre-weathering system. The natural surface characteristic of forming the life-long protective patina under environmental conditions is thereby retained. This process is also unique worldwide. The ‘pre-weathered’ products of our market competitors are either coated or painted/varnished and therefore no longer natural. The positive effect of the patina formation is therefore no longer present.

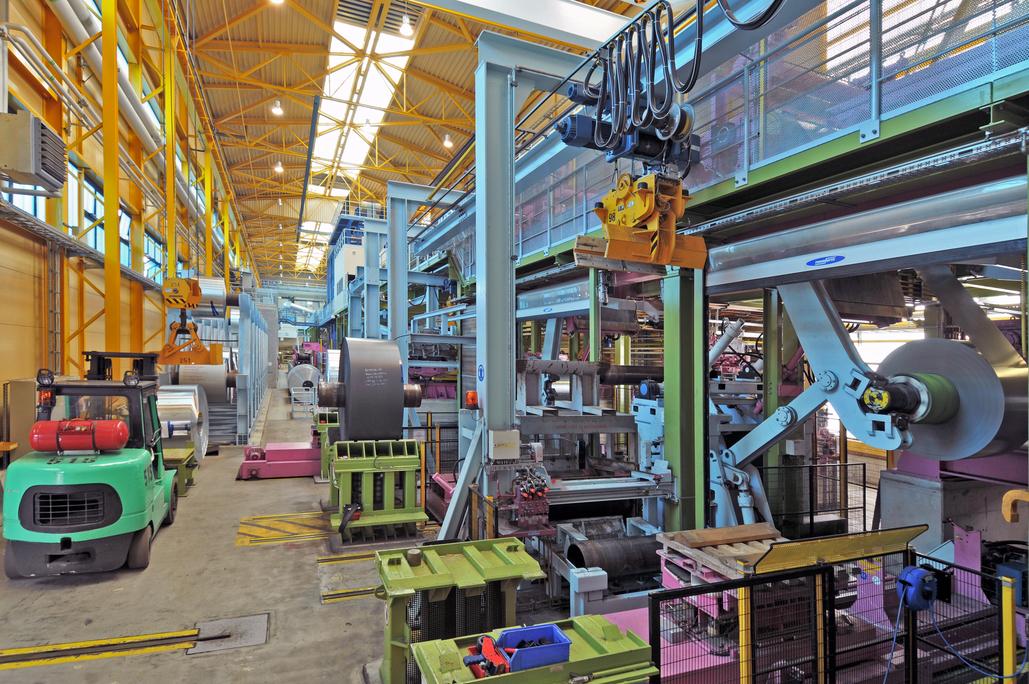

In our pre-weathering system, the bright rolled coils are subjected to pickling/staining and rinsed after a cleaning process. The whole procedure takes place in a closed, continuously-operating pickling/staining system, which meets the highest environmental requirements. Many measures are also taken that are far stricter than the current official environmental protection regulations: these include a dialysis system which converts the residual pickle/staining material into a reusable acid, thus drastically limiting the total acid requirement. In addition, a state-of-the-art catalyst system is used to clean the exhaust air, and the zinc sludge produced is recycled, too.

Whether the material becomes blue-grey or graphite-grey depends on the original alloy. For the graphite-grey material, the copper content is higher, for example. Incidentally, both bright rolled and pre-weathered materials have been fitted on our plant premises. Clearly, the Libeskind Villa was clad with prePATINA blue-grey. The façade elements at the zinc port have also been clad with blue-grey or granite-grey elements.  In contrast, the zinc surfaces at the main entrance of the administration building were clad with bright rolled RHEINZINK in the 1960s. In the next part, we will take a closer look at the further processing department.

Large coils have an impressive weight of about 20 tonnes and they are therefore naturally not viable for further processing. In the slitting/cut-to-length line, the coils are not only divided into smaller coils and sheets, but also subjected to the strength-bend-straightening process. This process pulls stresses out from the material which are created by the rolling process. The result is a wave-reduced material with straighter edges.

Up to this production step, the RHEINZINK semi-finished products are manufactured at the Datteln plant, i.e. coils and sheets, which can be further processed into finished products by the customers themselves. Naturally, RHEINZINK also has a wide product range, for example, it includes everything to do with roof drainage, or panels, and panels for roof and façade cladding.

This is why a large proportion of the clean-cut coils and sheets go on to further processing. There, automated processes meet manual work steps. Gutters, for example, are formed fully automatically, bundled and then packed onto pallets. The pipe-bending machine impressively bends a long straight pipe into a snake. After cutting, this bending creates individual pipe bends, but there are also areas where the employees reach for the soldering iron and connect components for roof drainage. The further processing department manufactures a total of more than 500 products in a wide variety of thicknesses and surface combinations. Some products are manufactured from our materials off-site by external, specialised suppliers, for example, RHEINZINK water-catch boxes are produced in southern Germany.

Small coils are also produced in the further processing department and prepared for transportation. Small coils weigh approx. 500 kg and are thus just 2.5 percent of the weight of the original large coil. After completion and packaging, all the products – whether gutters, pipes, panels, pipe clamps or small coils – are transferred to the logistics warehouse from where they are delivered to the customers.

Our little ‘tour of the plant’ ends with a visit to the further processing department. In the next part of our series, we will show you how our location in Datteln has developed since 1967.

Founded in 1967, the Datteln RHEINZINK-plant has evolved enormously in all areas over the decades.

Some of the milestones, apart from the construction of the rolling mill, are certainly the first steps in further processing in the early 1970s, the commissioning of the first pre-weathering plant at the end of the 1980s, and the successive further development of the office space, warehouse and production halls at the end of the 1990s and in the 2000s.

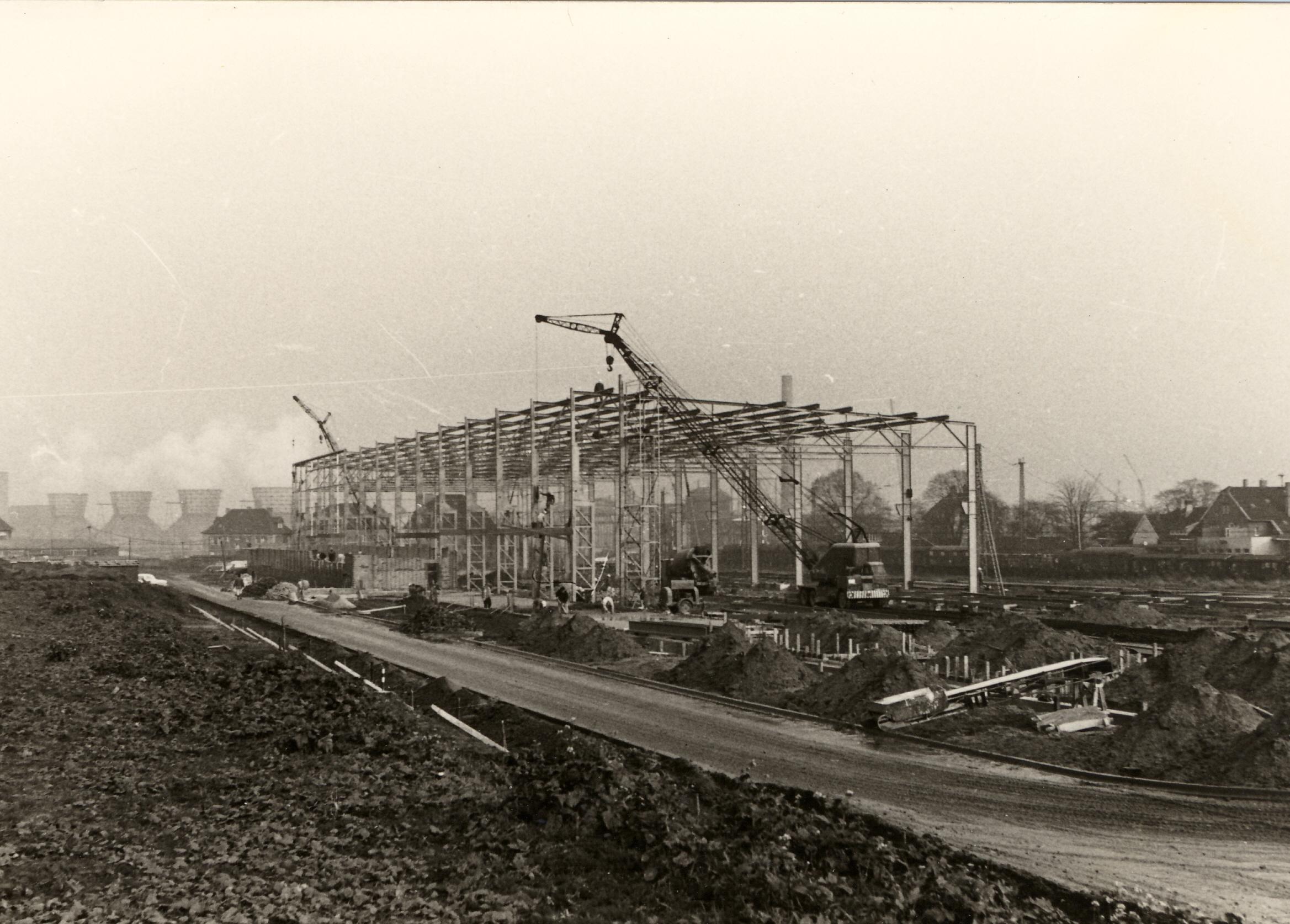

In 2006, the pre-weathering hall was opened in its current form. In 2009, the Libeskind Villa was built. Currently, a new large coil warehouse rounds off our factory premises in Datteln.

Have a look at our photos to get an idea of more than five decades of RHEINZINK history.

There are numerous different requirements for both new buildings and renovations. Such requirements include the installation of a roof drainage system to safely drain rainwater and protect the building.

A roof drainage system is also indispensable for buildings as it protects the building's substance. RHEINZINK is a specialist for gutters, downpipes and a variety of accessories made of titanium zinc. The products are available in various finishes as well as in semi-circular or box-shaped designs. They therefore offer both a functional as well as a visually appealing solution to many different building styles.

When you take a closer look at the gutters of houses, the embossing reveals their origin. Gutters, downpipes or even end bases are embossed with a small RHEINZINK logo. But there are also roof drainage products from RHEINZINK without the tell-tale embossing.  For example, reworkers use RHEINZINK coil material to manufacture their own gutters and pipes.

A quick overview of the advantages of a RHEINZINK-roof drainage system: precisely fitting system solutions for safe roof drainage, simple and cost-efficient installation, RHEINZINK - QUALITY ZINC, low-to-no-maintenance.

Architectural details are elements that enrich the architectural impression of a building. A consistent overall appearance can ultimately only be achieved if these harmonize with façades or roof elements.

A façade is an architectural design element; it defines the appearance of a building. However, it not only creates a representative appearance, but also has other important functions. For example, it protects the building from the weather, environmental influences and noise. RHEINZINK can also be used to masterfully set the scene for entire façades or partial surfaces.

It doesn't always have to be the classic roof tile; metal roofing is an attractive alternative, as it is lightweight, leak-proof and non-combustible. RHEINZINK has solutions for roofs that are weather-resistant, sustainable, long-lasting and have a highly appealing look.  To achieve this, various installation techniques have been developed, which can be realized with RHEINZINK: the sheet and coil material is manufactured in further processing steps into either long panels or tiles in small or large formats.

One of our core competencies is the development of innovative, high-quality products. The extensive knowledge and creativity of our development team, the latest trends in technology and design, and the needs of our customers are factors that ultimately lead from an idea to a product.

Some attractive examples from the extensive RHEINZINK product world are our premium surfaces: prePATINA, CLASSIC, artCOLOR, GRANUM and PRISMO, which are available in many designs and are suitable for a wide variety of purposes.
